Apeks MTX-R Sidemount Set Complete

Description

First stages

• Over balanced for superior performance.
• Compact environmentally sealed diaphragm system completely eliminating the maintenance issues associated with silicone, oil or grease filling.
• Recommended for frequent use in cold or contaminated water.
• Environmental over-moulded endcap & diaphragm that helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
• Double swivel hose for greater freedom of movement and comfort.
• 5 x 3/8” UNF medium pressure ports & 2 x 7/16” UNF high pressure ports.
• The 5th 3/8” UNF medium pressure port includes a protective bumper when not in use.
• Forged first stage body with heat exchanging ribs for maximum thermal performance.
• Angled HP ports for optimal hose routing and fitting transmitters.
• Forged rotating turret with medium pressure ports in a parallel direction for improved hose orientation.
• Tested for Octopus use – EN250A to 60 meters cold water.
• Nitrox/Oxygen compatible

Second stages

• Simple to use with no dive controls, pre-settable cracking effort or venturi control by an Apeks approved qualified technician.
• High performance pneumatically balanced lever operated poppet valve.
• Large diver friendly self-flushing controllable purge button.
• Front cover with over-moulded elastomer bumpers incorporates a formed chrome plated brass plate improving durability of the demand valve.
• Large protective elastomer bumpers on the side and on the top to protect the demand valve from impacts and scratches in the most vulnerable places.
• Reversible second stage for either a left or right-hand gas supply.
• Hard wearing, satin chrome.
• All gas contact moulded parts are produced using an active protection additive that kills MRSA, protects against E-Coli, bacteria and fungi, and is also very effective against viruses, mold, yeast and algae.
• Large heat exchanger fitted to help reduce second stage freezing.
• Nitrox/Oxygen compatible

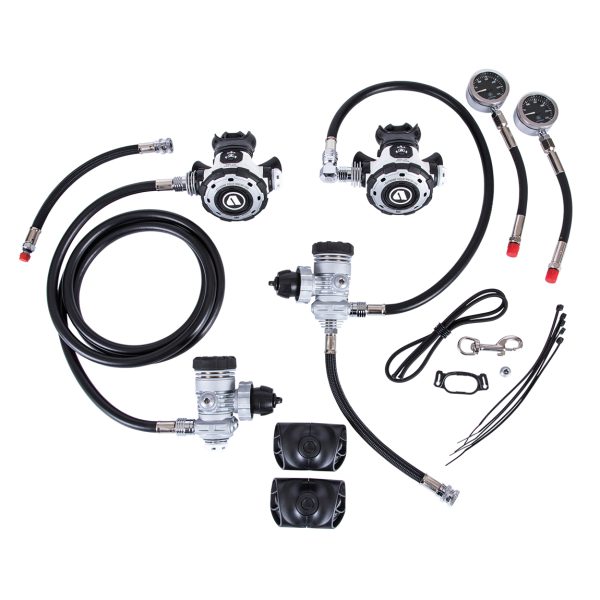

Kit Contents

• 2 ea. DPT DIN 1st stages with 5 port swivel turrets.
• 2 ea. MTX-R second stages.
• 210cm double swivel hose.
• 61cm double swivel hose
• 2 ea. 25cm length MP inflation hoses (one for buoyancy system, one for drysuit)
• 2 ea. TEK pressure gauges with 18cm hoses
• 1 ea. 90° elbow fitting
• 1 ea. bungee necklace
• 1 ea. bungee clip
• 1 ea. stainless steel bolt snap
• 2 sets of short exhaust ports
• Regulator bag
• Setup illustration, CD manual and quick start guide
• NOW INCLUDES THE NEW BUNGEE CONNECTOR SYSTEM

Additional information

Brand

Apeks

Founded in the mid-1970s, Apeks emerged when two friends combined diving and precision engineering expertise. They started in a small garage in northern England, crafting regulators now highly esteemed in the market. This spirit of British craftsmanship and precision-engineering endures decades later. Apeks now offers a full range of dive equipment trusted globally. Your dive kit must ensure safety and comfort with meticulous design, development, and testing in demanding environments. Whether for warm-water sidemount or cold-water deep dives, Apeks products enhance diving adventures. They prioritize premium, progressive products for diverse diving configurations, tested and proven by the extreme tech community over decades.
