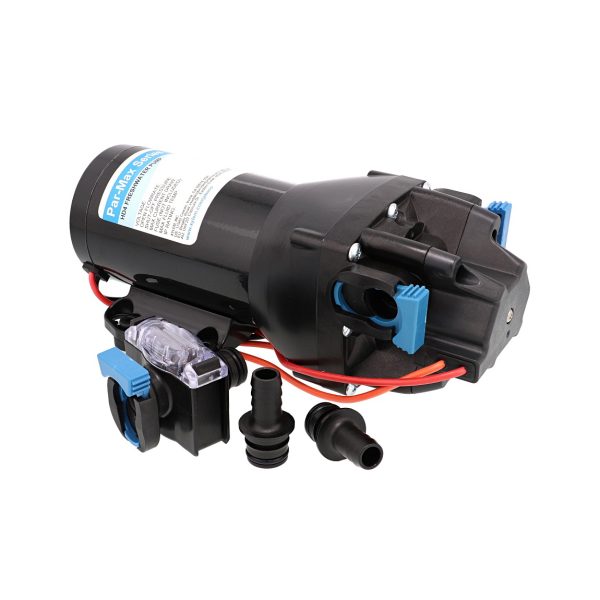

Jabsco Par Max HD 4′ Pressure-Controlled Pump 24V


Par Max HD 4′ pressure-controlled pump

24 volt d.c., Standard Pressure

Ask for More Info
Or split into 4x interest-free payments Learn more
Availability: 3 in stock SKU: Q402J-112S-3A/ASP/ITT002 Categories: ,


  • Connections: for 13mm (½”) bore hose
  • Dimensions: 239mm long, 109mm wide, 97mm high
  • Fuse Size: 10(amp)
  • Output: 16 litres/minute (3.5 gallons/minute) open flow
  • PRESSURE SWITCH – cuts in at 0.7bar (10psi) – cuts out at 1.7bar (25psi)
  • Efficient, high-flow, self-priming pump serving 4 or more outlets
  • Multi-diaphragm design self primes to 1.5m vertical lift, can run dry without damage
  • Supplied with snap-in ports for hose 1/2″ (13mm) and Strainer
  • Motor protected by automatic thermal overload cut-out Heavy duty (HD) models feature motors and cast aluminum lower housings for longer life even at high pressures
  • Other snap-in ports for hose connections are available. For Hep20 connections, use CW193W in conjunction with 30649-1000 or 30655-1000.
  • Packaged Dimensions: L:40.00 x H:14.00 x W:15.00cm
  • Actual Weight: 2.50 Kg  (Approx. 3.00 Kg packed)

Additional information



Product Category


Product Type

Pressure-Controlled Pump
