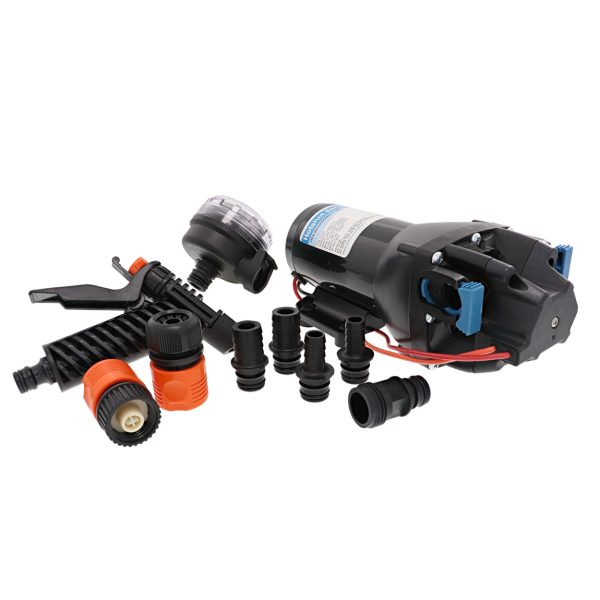

Jabsco HotShot HD 4′ Washdown Pressure-Controlled Diaphragm Pump 12V


Hotshot HD 4′ washdown pump 12v

12 volt d.c., High Pressure and High Flow 15lpm / 4gpm 60psi

HotShot Series

Ask for More Info
Or split into 4x interest-free payments Learn more
Availability: Out of stock SKU: Q401J-118N-3A/ASP/ITT003 Categories: ,


  • Connections: for 13mm (½”) and 19mm (3/4″) bore hose and US GHT.
  • Dimensions: 239mm long, 109mm wide, 97mm high
  • Fuse Size: 20(amp)
  • Maximum Current: 11(amps)
  • Output: 15 litres/minute (4 gallons/minute) open flow
  • PRESSURE SWITCH – cuts out at 4.1bar (60psi)
  • Efficient, high-flow, self-priming pump
  • Multi-diaphragm design self primes to 2.4m vertical lift, can run dry without damage
  • Supplied with snap-in ports for hose 1/2″ (13mm) and 3/4″ (19mm) and 3/4″ US Garden Hose Thread (1 pc). Pumpgard Strainer and Trigger Nozzle included.
  • Heavy Duty Motor protected by automatic thermal overload cut-out Heavy duty (HD) models feature motors and cast aluminum lower housings for longer life even at high pressures
  • IPX6 rated. Fluid Temperature Range: 32F – 140F (0C – 60C). Intermittent duty cycle
  • Packaged Dimensions: L:45.00 x H:14.00 x W:20.00cm
  • Actual Weight: 2.50 Kg  (Approx. 3.00 Kg packed)
