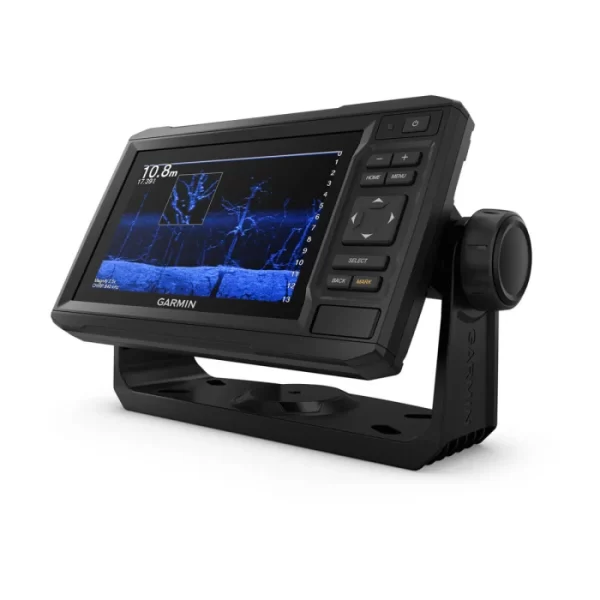

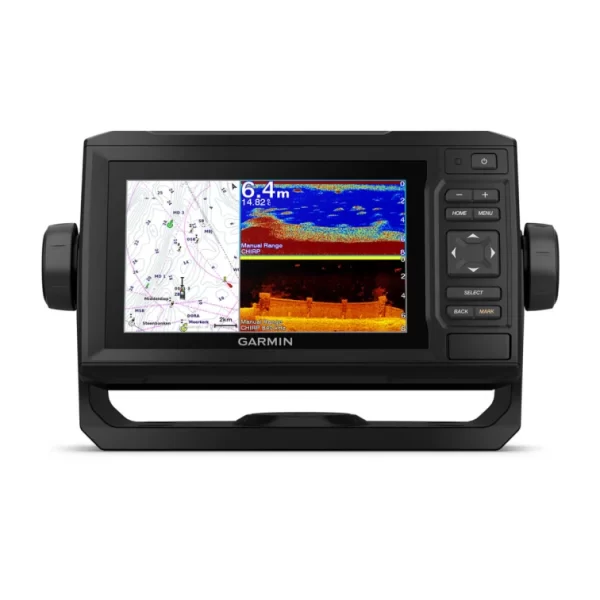

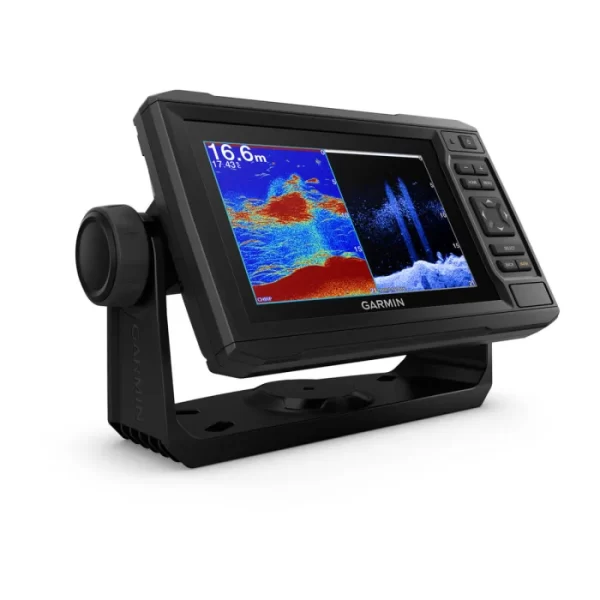

Garmin ECHOMAP UHD 62cv | With GT24-TM transducer

R17,399.00

JOIN THE CLUB. FIND MORE FISH.

The sunlight-readable 6” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

Ask for More Info
Or split into 4x interest-free payments Learn more
Availability: Out of stock SKU: 010-02329-01 /ASP/GLO001 Categories: ,

Description

video

JOIN THE CLUB. FIND MORE FISH.

The sunlight-readable 6” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

Sonar icon

See below your boat in incredible detail with optional transducer

Mapping icon

Navigate any waters with optional charts and maps

ActiveCaptain icon

Manage your marine experience from nearly anywhere

QuickDraw icon

Create your own maps on the fly and tailor them to fit your needs

Take fishing to the next level.

Take fishing to the next level.

ECHOMAP UHD 62cv with transducer screen

OPTIONAL TRANSDUCER BUNDLE

Select the transducer bundle to add a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

ECHOMAP UHD 62cv with chart screen

OPTIONAL CHARTS AND MAPS

Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.

ECHOMAP UHD 62cv with QuickDraw screen

QUICKDRAW CONTOURS

Create personalised fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the QuickDraw Community on Garmin Connect.

Boat connected.

Boat connected.

ECHOMAP UHD 62cv with NMEA screen

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

ECHOMAP UHD 62cv with ActiveCaptain screen

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications1, software updates, Garmin QuickDraw Community data and more.

Additional information

Brand

Garmin

Product Category

Marine

Product Type

Chartplotter

Brand

Garmin

Reviews

There are no reviews yet.


Only logged in customers who have purchased this product may leave a review.

General

Dimension 21.8 x 13.0 x 6.2 cm
Input Keyed
Display Size 13.7 x 7.7 cm; 15.2 cm (6.2″) diagonal
Display Resolution 480 x 800 pixels
Display Type WVGA display
Weight 0.7 kg
Water rating IPX7

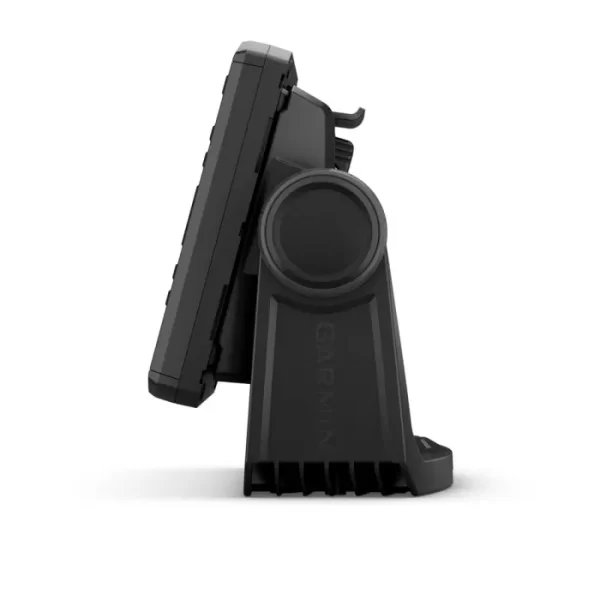

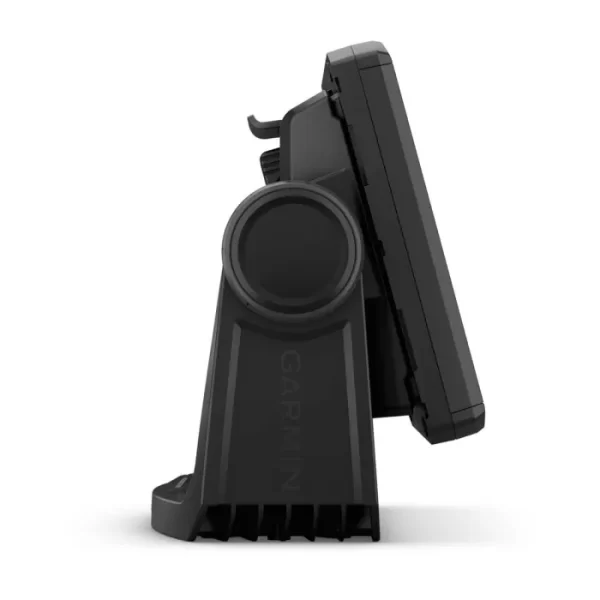

Mounting Options Bail or flush

Maps & memory

Accepts Data Cards 1 microSD™ card; 32 GB maximum size
Waypoints 5,000
Track points 50,000
Tracks 50 saved tracks
Navigation Routes 100

Sensors

Has built-in receiver
Receiver 5 Hz
NMEA 2000® compatible
NMEA 0183 Compatible
GPS
Supports WAAS

Built-in maps

Tide tables

Optional map support

LakeVü g3
LakeVü g3 Ultra
TOPO
Standard Mapping
Garmin Quickdraw Contours

Chartplotter features

AIS
DSC
Supports Fusion-Link™ compatible radios
ActiveCaptain Mobile Planning Compatible Yes
Wireless remote compatible
Sailing features

Sonar features & specifications

Displays sonar
Power output 500 W
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü built-in 260/455/800/1000/1200 kHz

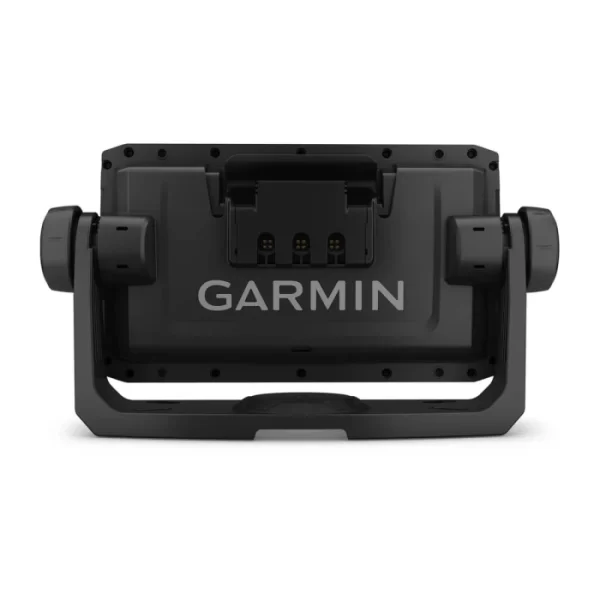

Connections

NMEA 2000 ports 1
Connections NMEA0183 Input Ports 1
Video input ports None
Video output ports None
Garmin Marine Network Ports None
4-pin transducer ports

Electrical features

Power Input 9 to 18 Vdc
Typical current draw at 12 Vdc 0.7 A
Maximum current draw at 12 Vdc 1.25 A
Maximum power usage at 10 Vdc 12W
